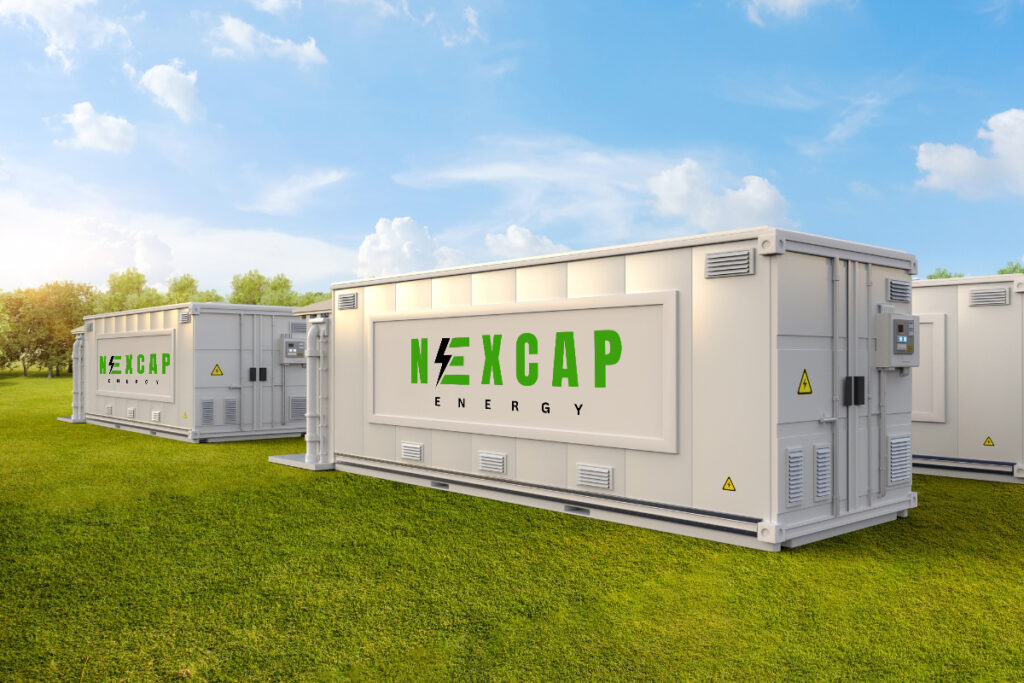

The NEX Mega-750V-1MWh/2MWh system is housed within a 20-foot container and comes fully integrated with battery clusters, a DC cabinet, fire safety system, air conditioning, power distribution unit, and more.
NXE-750V1MWh/2MWh NEX Mega BESS- High Voltage Commercial & industrial Containerized Solution
Product Features
- High Voltage Configurations (up to 1500V DC)
- Dual-Stage Fire Mitigation System
- Integrated DC/DC & DC/AC Coupling Options
- Eco-Friendly & Maintenance-Free
- Smart Energy & Thermal Management
- Wide Operating Temperature Range
- Easy to install
Product Specifications
| Specification | Detail |
|---|---|
| Part Number | NXE-750V1MWh |
| Total Capacity | 1440Ah |
| Nominal Voltage | 748.8Vdc |
| Maximum Charge Voltage | 842.4Vdc |
| Discharge Cut-off Voltage | 678.6Vdc |
| Peak Resistance | <100 mΩ |
| Continuous Charge Current | 1440A |
| Continuous Discharge Charge Current | 1440A |
| Self-discharge Rate | 2% Per Month |
| DOD | 100% |
| Casing Material | 20 feet Container |
| PDU Rack | 8pcs |
| Monitoring Data | SOC, voltage, current, temperature |
| Communication | CAN/485 |
| Terminals | High Power Energy Storage Terminals |
| Usage | Industry |
| Grid-tied AC Connection | 380/400 (-15%~15%) Vac |
