Graphene Super Capacitor battery manufacturer for Solar Residential, commercial & Telecommunication use cases. Long Life, plug & play smart BMS.

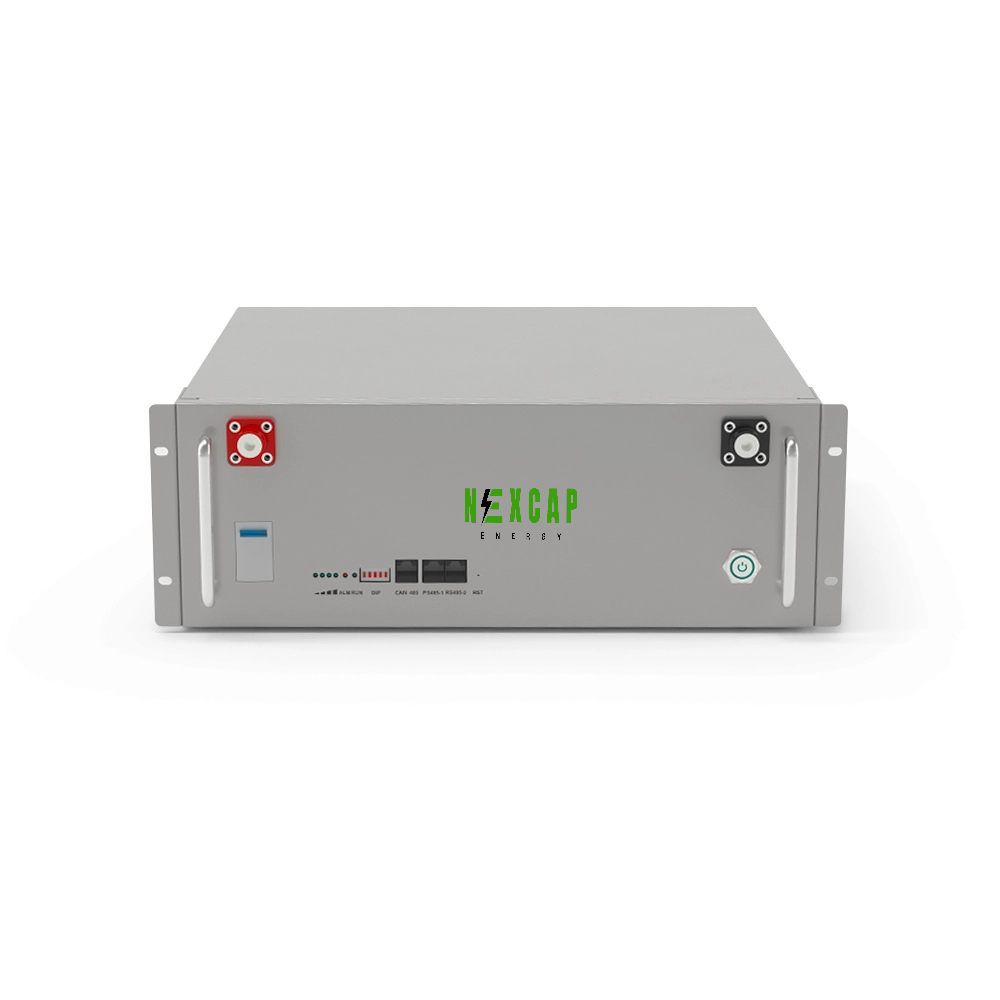

NXE-487200-SCB Supercapacitor Battery
Product Features
● Graphene Technology
● Long life Cycle
● 100% DOD
● Safest technology
● High energy density
● Compact & Light weight
● Low self-discharge rate
Smart Monitoring & Control
● Zero maintenance
● Environment friendly
| Specification | Detail |
|---|---|
| Part Number | NXE-487200-SCB |
| Total Energy | 7200Wh / 140Ah |
| Nominal Voltage | 51.8V |
| Maximum Charge Voltage | 58.8V |
| Discharge Cut-off Voltage | 37.8V |
| Peak Resistance | <50 mΩ |
| Continuous Charge Current | 70A |
| Continuous Discharge Charge Current | 140A |
| Self-discharge Rate | 2% Per Month |
| DOD | 100% |
| Casing Material | Steel |
| Monitoring Data | SOC, voltage, current, temperature |
| Series Connection | Not Allowed |
| Parallel Connection | Up to 16 units |
| Weight | 58KG |
| Dimensions (W x D x H) | 470 x 463 x 177 mm |
| Communication | CAN/485 |
| Terminals | Anderson / Screw Type |
| Usage | Solar, UPS, Telecom, Data Centers |
